Wireless energy management system

Name: Wireless energy management system
Rating: 5 (99 reviews)

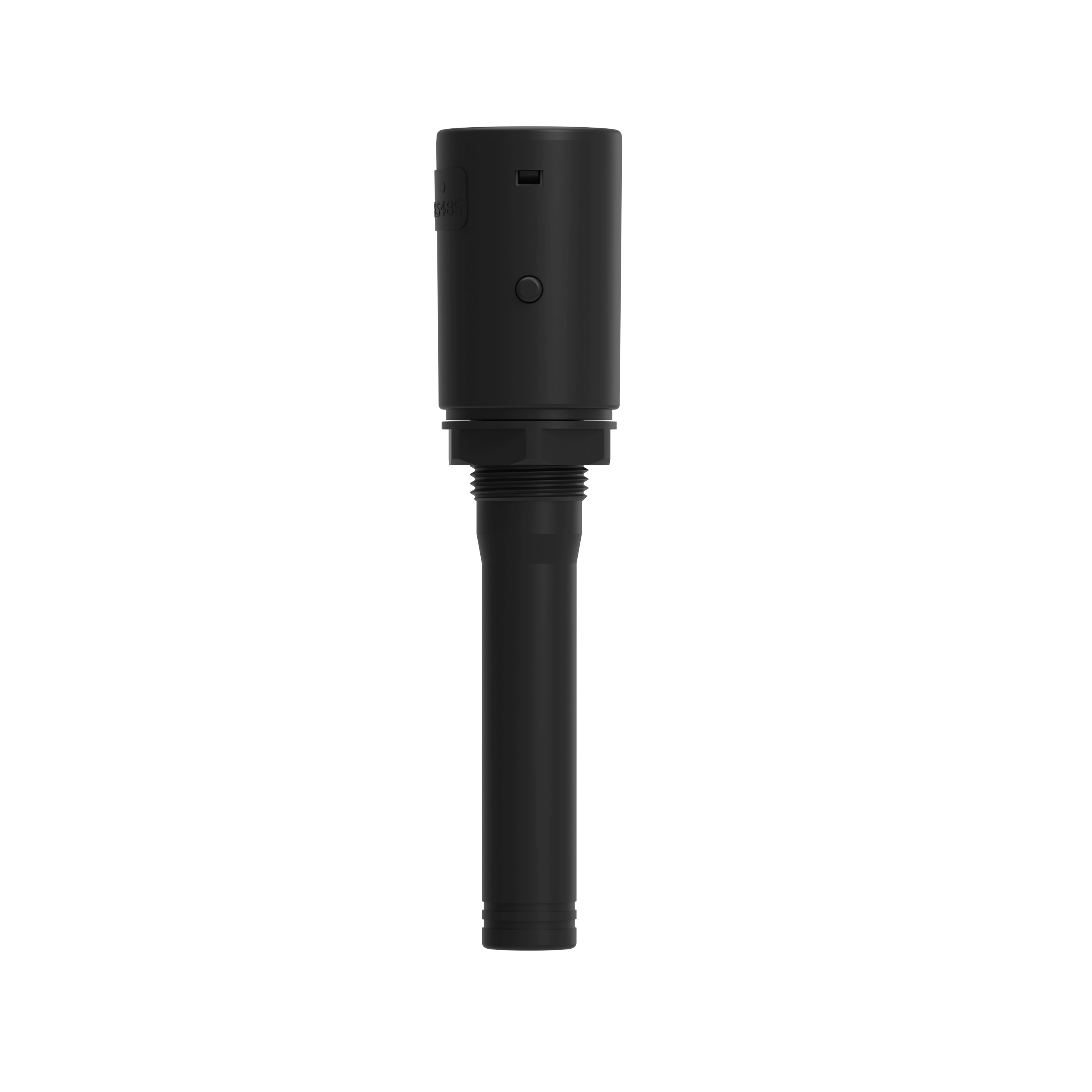

Model	SUN-SMART-TXU1
Electrical Parameters
Input Voltage	DC 5V
Communication
Communication Model	LoRa
Communication Distance	≈200m(Barrier free)
Basic Parameters
Operating Temperature Range	-40 to +60℃
Permissible Ambient Humidity	0-100%
Ingress Protection(IP) Rating	IP20(After installation IP65)
Allowable Altitude	≤4000
Product Size (WxHxD)	137.8x31.3x31.3mm
Weight	45.8g
Warranty	5 Years
Standard	IEC/EN 62368-1
LoRa Parameters
Frequency Range	920MHz-928MHz
Antenna/Antenna Gain	Built-in/0.56dBi

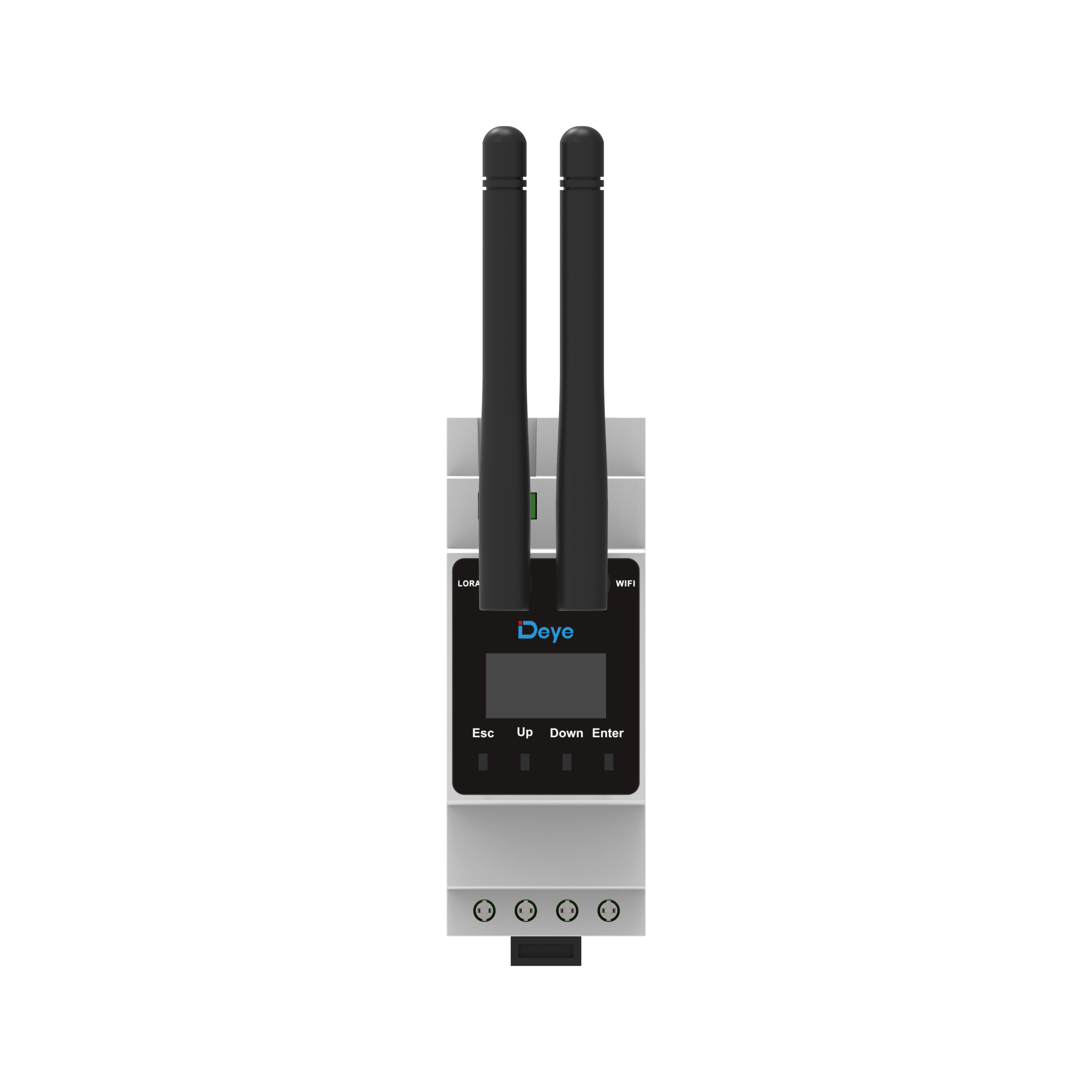

Model	SUN-SMART-CTU2-L	SUN-SMART-CTU2-WL
Electrical parameters
Connection Type	L1/N (Single phase),L1/L2/L3/N (Three phase),L1/L2/N (Split phase)
CT (Rated Secondary Output)	50mA/5A
Operation Voltage	85~300Va.c.(L-N)
Rated Frequency/Range	50Hz(45Hz-55Hz)/60Hz(55Hz-65Hz)
Self Consumption Power	≤2W
AC Voltage Withstand	4KV/1min
Accuracy
Voltage/Current/Frequency/Power	±0.1V/±0.01A/±0.01Hz/±1W
Communication and Display
Communication Interface	/LoRa/RS485	LoRa/RS485/Wi-Fi&BT
Lora Communication Distance	≈200m(Barrier free)
Display	LCD
Display Data	Voltage,Current,Active Power,Reactive Power,Frequency,Power Factor,Energy
General Data
Operation Temperature	-40 to +60℃
Operation Humidity	0-75%
Ingress Protection(IP) Rating	IP20
Altitude	≤3000
Mounting	DIN-Rail Mounting
Size	36x94x64mm
Weight	0.12kg
Warranty	5 Years
Certification Standards	RCM,IEC 61010-1,CE,FCC
LoRa Data
Frequency Range	920MHz-928MHz
Antenna/Antenna Gain	Adhesive Mount Antenna/Suction Cup Antenna/-0.13/1.60dBi
Wi-Fi Data
Frequency Range	/	2412MHz-2462MHz
Interface Antenna/Antenna Gain	/	Adhesive Mount Antenna/Suction Cup Antenna/2.59/2.39dBi

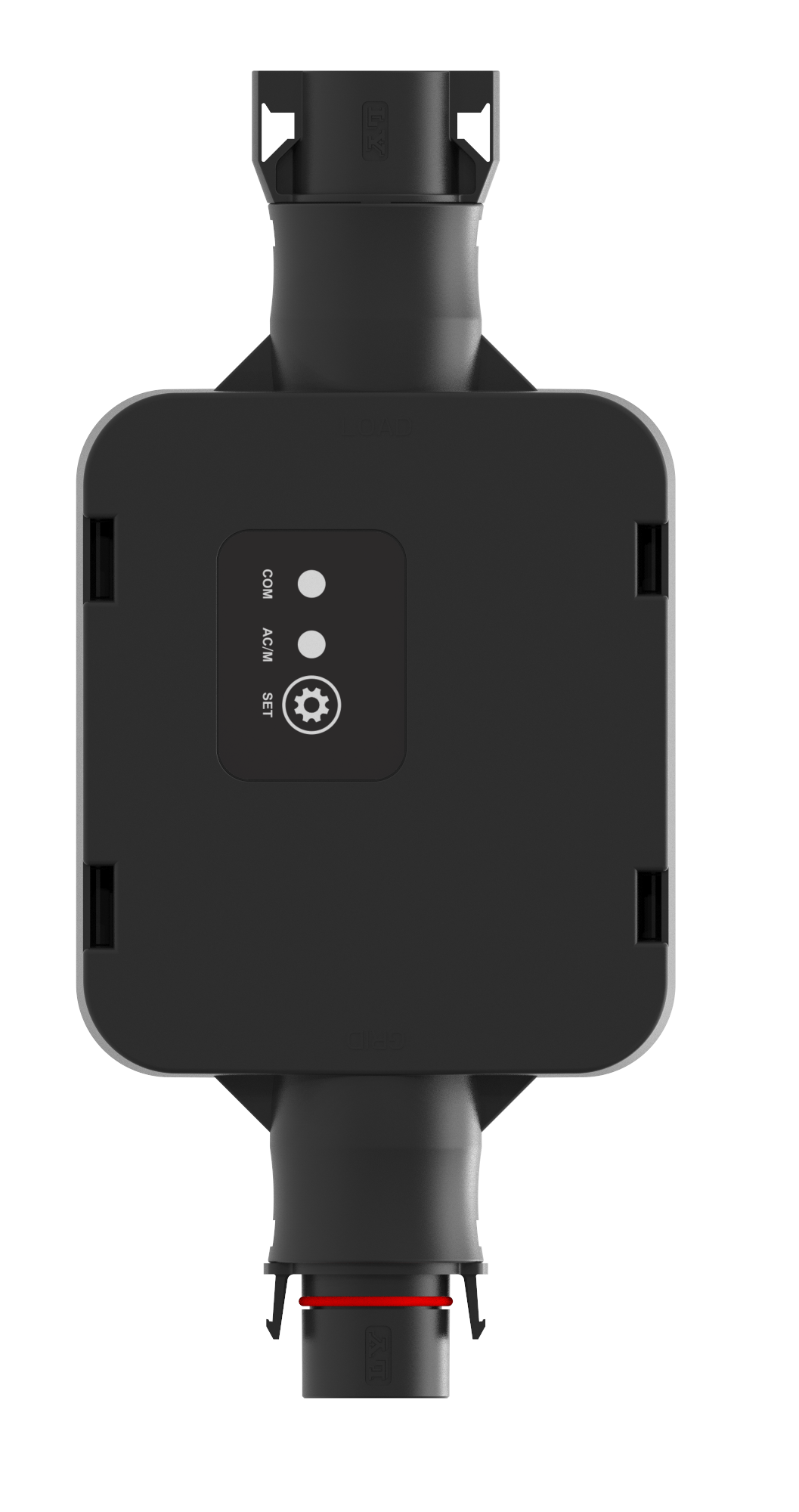

Model	SUN-SMART-SWITCHU2P3
Electrical Parameters
Voltage Range	94-238Va.c.(Phase voltage)
Connection Type	L1/N(single phase)，L1/L2/L3/N(three phase)，L1/L2/N(split phase)
Maximum Current	25Aa.c.(Phase current)
Frequency and Range	50Hz(45Hz-55Hz)/60Hz(55Hz-65Hz)
Connection	Connector plug-in type
Communication
Communication Model	LoRa
Lora Communication Distance	≈200m(Barrier free)
Basic Parameters
Working Temperature Range	-40 to +45°C
Allow Environmental Humidity	0-100% RH
Ingress Protection(IP) Rating	IP65
Protection level	CLASS I
Allowable altitude	≤4000m
Product Size (WxHxD)	96.7x204.7x37.7mm
Weight	0.4kg
Warranty	5 Years
Standard	RCM, UL 61010-1:2012; CAN/CSA-C22.2 No. 61010-1-12
Lora Parameters
Frequency Range	920MHz-928MHz
Antenna/Antenna Gain	Internal Antenna/-0.03dBi@927MHz

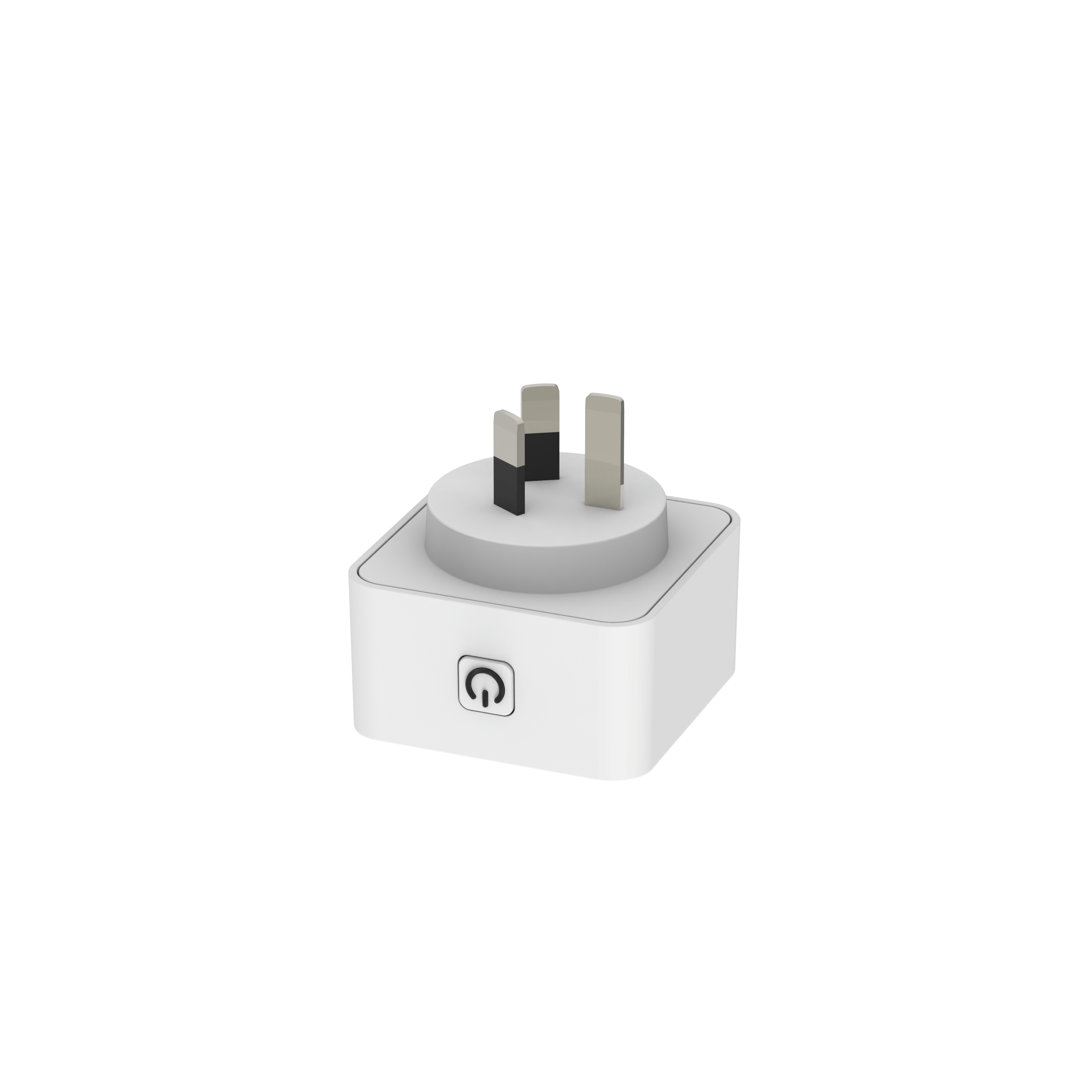

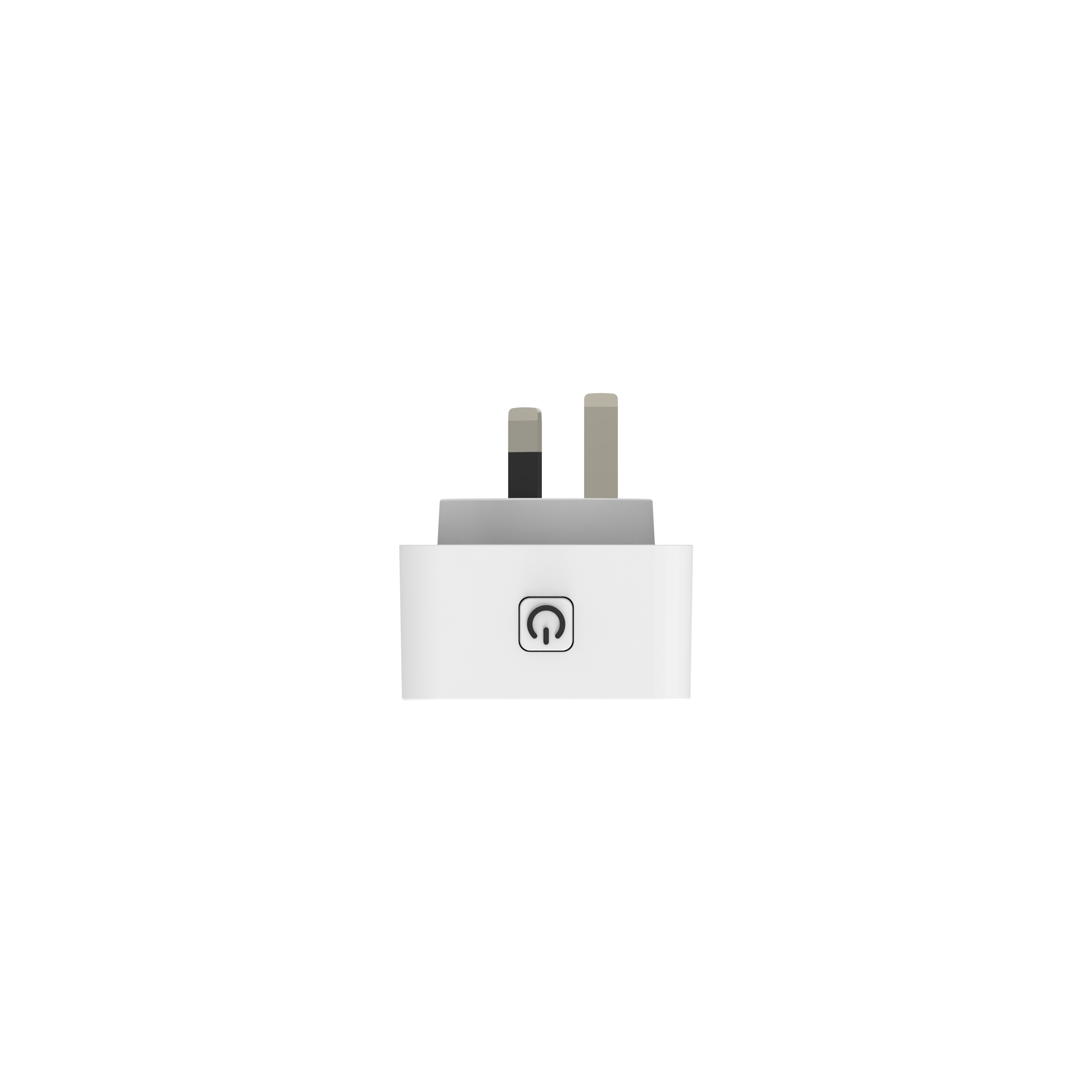

Model	SUN-SMART-PLUG01-I
Electrical Parameters
Rated Voltage	220-250Va.c.(Phase voltage)
Maximum Current	10Aa.c.
Frequency and Range	50Hz(45Hz-55Hz)
Connection	Plug-type
Communication
Communication Model	LoRa
Lora Communication Distance	≈200m(Barrier free)
Basic Parameters
Working Temperature Range	-40 to +60°C
Allowable Environmental Humidity	0-95% RH
Ingress Protection(IP) Rating	IP20
Protection Level	CLASS I
Allowable Altitude	≤3000m
Product Size (WxHxD)	59.1x59.6x37.6mm
Weight	0.08kg
Warranty	5 Years
Standard	RCM, VDE 0620-2-1;EN 61058
LoRa Parameters
Frequency Range	920MHz-928MHz
Antenna/Antenna Gain	Internal Antenna/-1.78dBi@868MHz

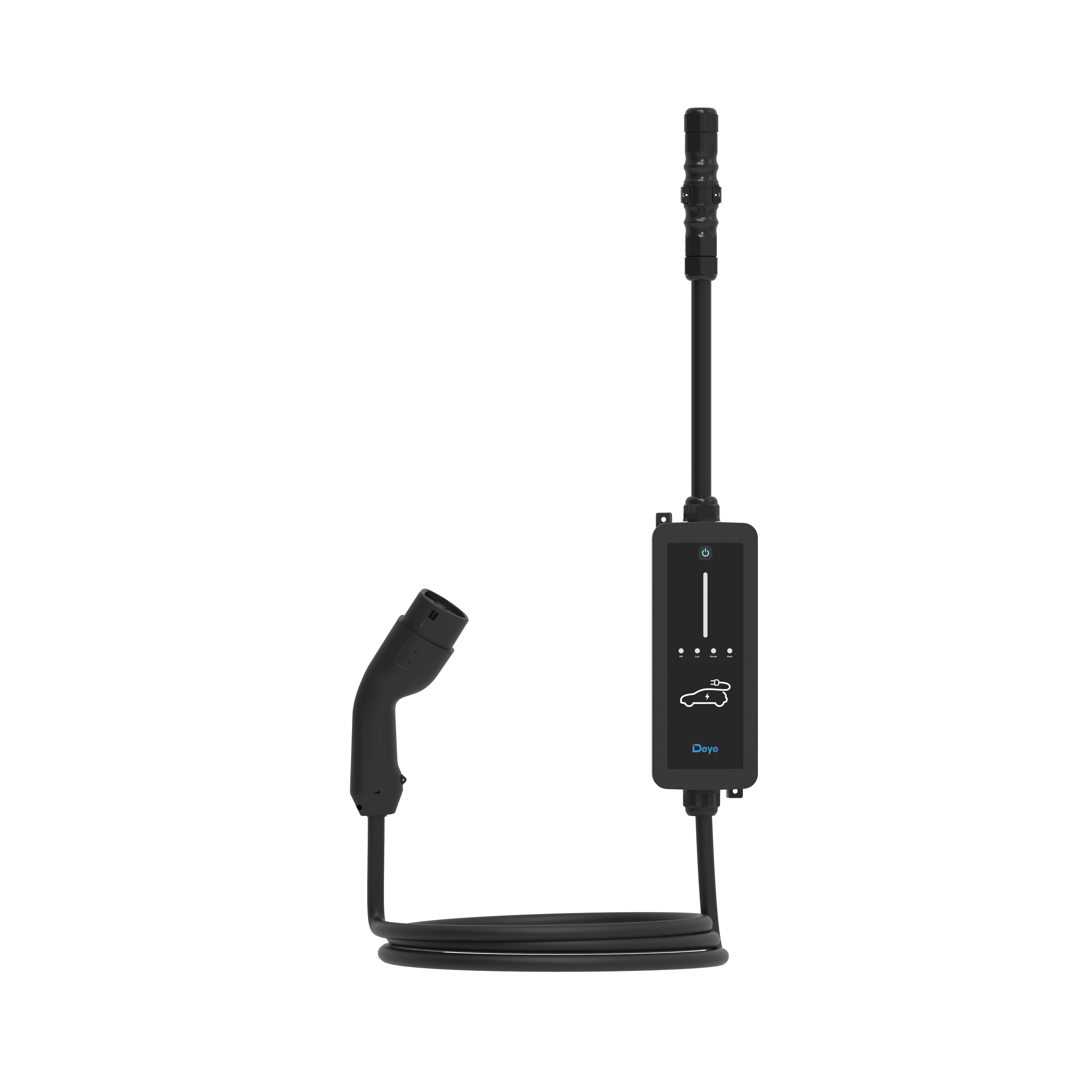

Model	SUN-EVSE11K01-AC	SUN-EVSE22K01-AC
Product Parameters
Rated Voltage/Range (V)	230(single phase), 230/400(three phase)
Connection Mode	L+N+PE, 3L+N+PE
Rated Current (A)	16	32
Rated Frequency/Range	50Hz (45Hz-55Hz)/60Hz (55Hz-65Hz)
Maximum Output Power (kW)	3.5(single phase)/ 11(three phase)	7(single phase)/ 22(three phase)
Starting Methods	Plug & Play / Scheduled Charging
Equipment Protection
Over Temperature Protection	Yes
Low Temperature Protection	Yes
Over Voltage Protection	Yes
Under Voltage Protection	Yes
Short Circuit Protection	Yes
Over Load Protection	Yes
Earth Fault Protection	Yes
Leakage Current Protection	DC 6mA
Surge Protection Level	TYPE II
General Specifications
Operating Temperature Range (°C)	-40 to +55°C
Permissible Ambient Humidity	5%~95% No condensation
Permissible Altitude (m)	≤3000
Noise (dB)	<25
Ingress Protection(IP) Rating	IP 66
Cabinet Size (WxHxD mm)	104x264x58
Weight (kg)	3.7
Gun Cable Length (m)	4.2
Number of Charging Guns	1
Safety EMC/Standard	RCM , CE, FCC, EN IEC 61851-1:2019, IEC 61851-1:2017, EN 300 220-2 V3.1.1:2017, EN 300 328 V2.2.2:2019, EN IEC 62311:2020, EN 301 489-1 V2.2.3:2019, EN 301 489-3 V2.3.2:2023, EN 301 489-17 V3.3.1:2024, EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021, EN IEC 61851-21-2:2021
Interface
Communication Modes	LoRa/Wi-Fi/BLE
LoRa Parameters
Frequency Range	920MHz-928MHz
Antenna	Internal Antenna
