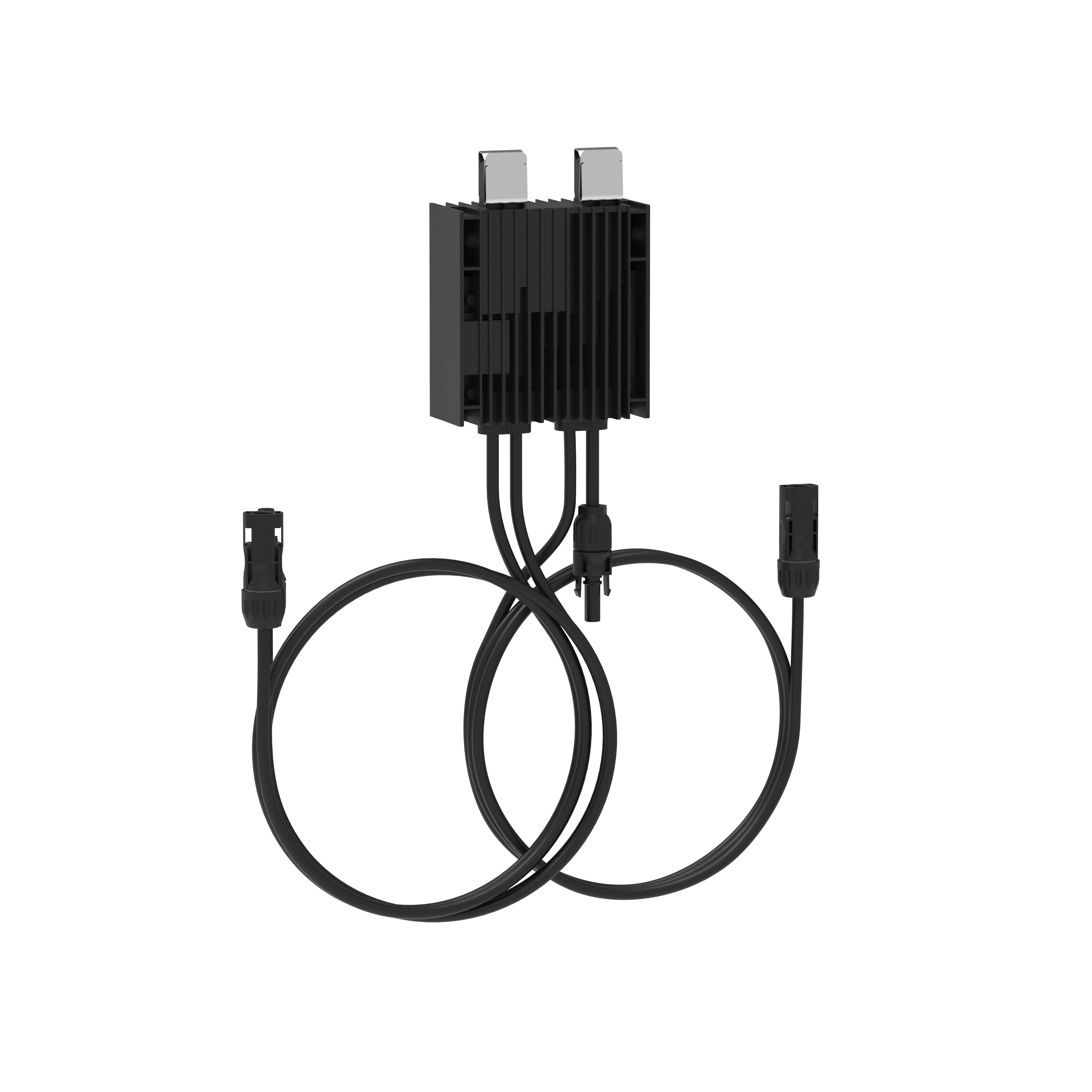

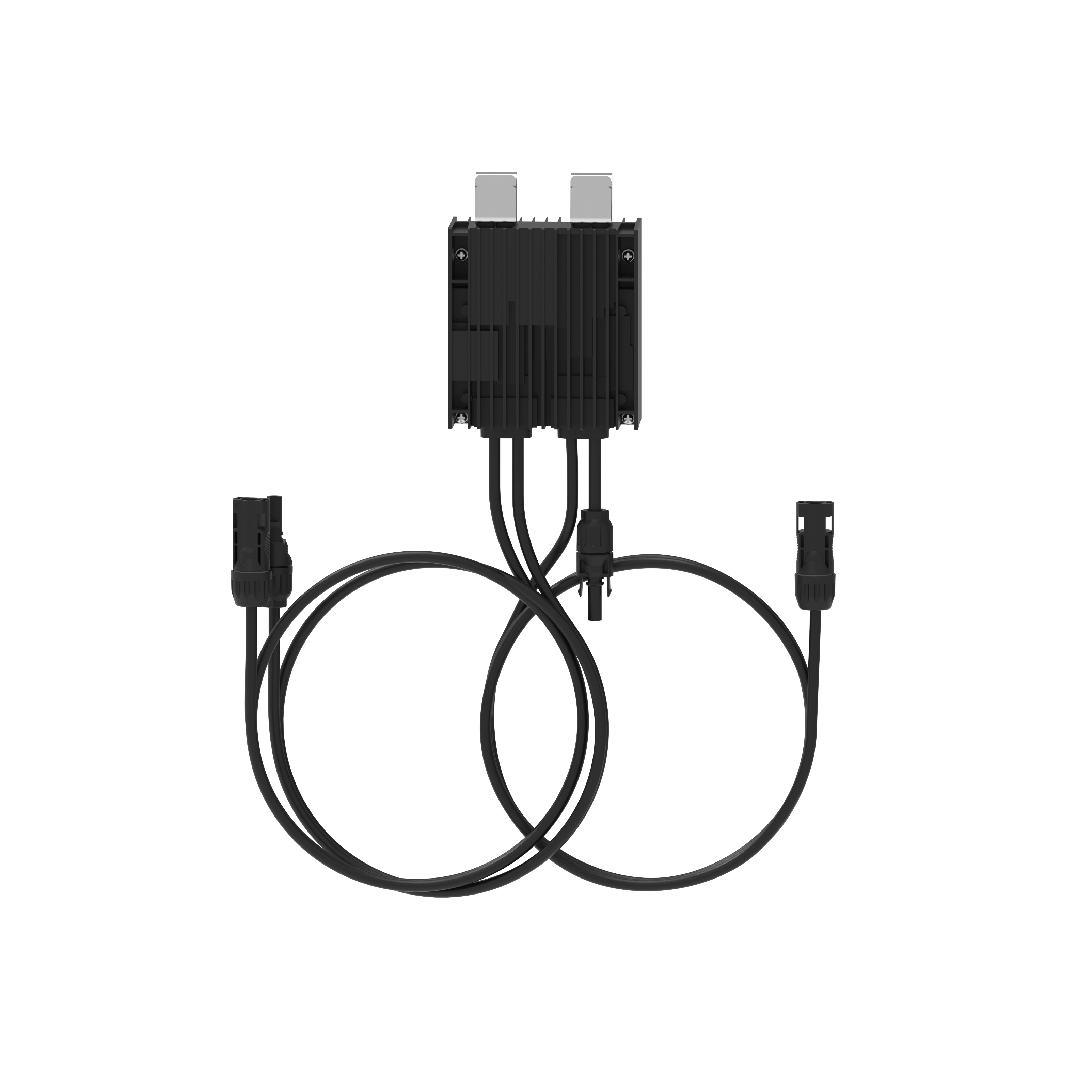

SUN-OPTMZ01-STR2-20A

Model	SUN-OPTMZ01-STR2-20A
Input Data
Max.PV power (W)	1600
Max.Input Voltage (V)	120
MPPT Voltage Range (V)	20-120
Max.Input Short-Circuit Current (A)	30
Max.Operating Input Current (A)	20
Max.Efficiency	99.6%
Over Voltage Category	OVC II
Output Data
Max. Output Voltage (V)	120
Max. Output Current (A)	20
Output bypass^[1]	Yes
Output voltage during standby per optimizer	1V
General Data
Operating Temperature Range	-40℃-70℃^[2]
Permissible Ambient Humidity	0-100%RH
Permissible Altitude	4000m
Ingress Protection (IP) Rating	IP 68
Input connector	PV005
Input wire length	1.4m x 2
Output connector	PV005
Output wire length	3m+0.12m
Cabinet Size（WHD）[mm]	96.6 x 134.5 x 45.6
Weight[kg]	1kg
Warranty	10 years
Type Of Cooling	Natural cooling
EMC Standard	EN61000-6-1/2/3/4, EN 55011:2016/A2:2021, EN62920:2017/A1:2021
Safety Standard	IEC62109-1 (class II safety)
