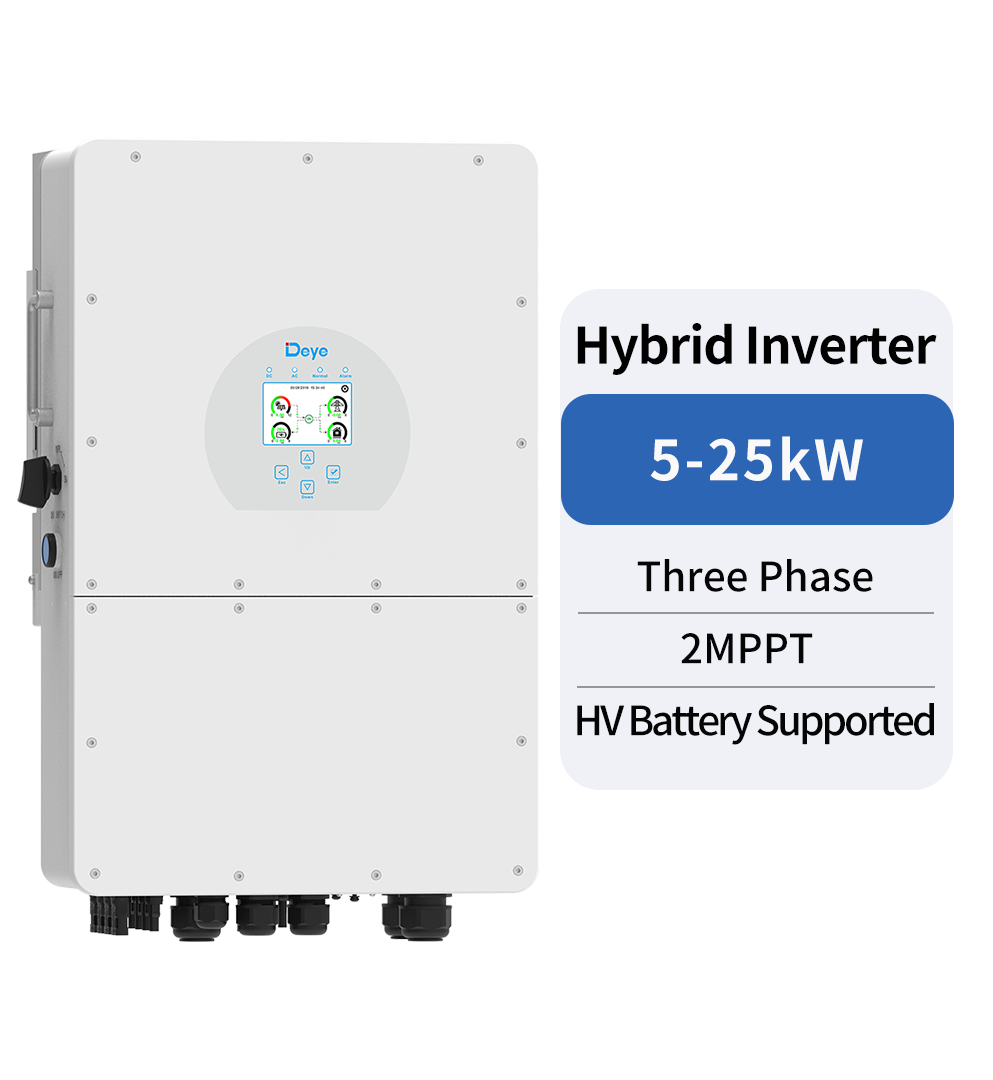

Model |
SUN-5K -SG01HP3-AU-AM2 |
SUN-6K -SG01HP3-AU-AM2 |
SUN-8K -SG01HP3-AU-AM2 |
SUN-10K -SG01HP3-AU-AM2 |
SUN-12K -SG01HP3-AU-AM2 |
SUN-15K -SG01HP3-AU-AM2 |
SUN-20K -SG01HP3-AU-AM2 |
SUN-25K -SG01HP3-AU-AM2 |
Battery Input Data |
|
Battery Type |
Lithium-ion |
Battery Voltage Range(V) |
160-700 |
Max.Charging Current(A) |
30 |
30 |
37 |
50 |
Max.Discharging Current(A) |
30 |
30 |
37 |
50 |
Charging Strategy for Li-ion Battery |
Self-adaption to BMS |
Number of battery input |
1 |
PV String Input Data |
|
Max PV Input Power(W) |
7500 |
9000 |
12000 |
15000 |
18000 |
22500 |
30000 |
37500 |
Max PV Input Voltage(V) |
1000 |
Start-up Voltage(V) |
180 |
MPPT Range(V) |
150-850 |
Full Load PV Voltage Range (V)
|
195-850 |
195-850
|
260-850
|
325-850
|
340-850
|
420-850
|
500-850
|
625-850
|
Rated PV Input Voltage (V) |
600 |
700 |
Max. PV ISC (A) |
30+30 |
39+30 |
39+39 |
PV Input Current (A) |
20+20 |
26+20 |
26+26 |
No.of MPP Trackers/No.of String Per MPP Tracker |
2/1+1 |
2/2+1 |
2/2+2 |
AC Input/Output Data |
|
Rated AC Input/Output Active Power(W) |
5000 |
6000 |
8000 |
10000 |
12000 |
15000 |
20000 |
25000 |
Rated Apparent Output Power (VA) |
5000 |
6000 |
8000 |
10000 |
12000 |
15000 |
20000 |
25000 |
Max. AC Output Power (W)
|
5000 |
6000 |
8000 |
10000 |
12000 |
15000 |
20000 |
25000 |
Peak Power (off-grid)(W) |
1.5 times of rated power,10s |
AC Output Rated Current (A) |
7.3 |
8.7 |
11.6 |
14.5 |
17.4 |
21.8 |
29 |
36.3 |
Max. AC Output Current(A) |
7.3 |
8.7 |
11.6 |
14.5 |
17.4 |
21.8 |
29 |
36.3 |
Max. Three-phase Unbalanced Output Current |
13 |
13 |
18 |
22 |
25 |
30 |
35 |
41.7 |
Max Continuous AC Passthrough (A) |
40 |
80 |
Generator input/Smart load
/AC couple current (A)
|
7.3/40/7.3
|
8.7/40/8.7
|
11.6/40/11.6
|
14.5/40/14.5
|
17.4/80/17.4
|
21.8/80/21.8
|
29/80/29
|
36.3/80/36.3
|
Grid Connection Form |
3L+N+PE |
Output Frequency and Voltage
|
230/400V 240/415V 0.85Un-1.1Un |
Power Factor
|
0.8 leading-0.8 lagging |
Total Harmonics Current Distortion (THDi)
|
<3% (of nominal power) |
DC current injection
|
<0.5%ln |
Efficiency |
|
Max Efficiency |
97.6% |
Euro Efficiency |
97.0% |
MPPT Efficiency |
99.9% |
Equipment Protection |
|
Integrated
|
Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection,
Output Shorted Protection, Surge Protection, Arc Fault Circuit Interruption (AFCI optional)
|
|
|
Over Voltage Category |
DC Type II/AC Type III
|
Certifications and Standards |
|
Grid Regulation
|
AS/NZS 4777.2
|
|
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
|
General Data |
|
Operating Temperature Range(℃) |
-40 to +60℃, >45℃ Derating
|
|
|
|
GPRS/WIFI/Bluetooth/4G/LAN(optional)
|
Noise |
≤ 55 dB(A) |
Protection Degree
|
IP 65 |
Installation Style
|
Wall-mounted
|
Inverter topology
|
Non-isolated
|
Size (mm)
|
408*638*237(Excluding connectors and brackets) |
Weight[kg] |
30.5 |
Cooling |
Free Cooling
|
Smart cooling
|
Warranty
|
|
